Make:

Winget Syncro

more pictures...

Type:

Double Deck Rod Block Machine

Description:

This two die machine is used for heavy rod breakdown. A shaving head can be fitted in place of the second die position. The unit is normally supplied with a two or three speed gearbox or alternatively an AC variable speed drive. Stringing facilities are provided together with forward and reverse inching.

Specification:

Maximum Entry

19mm copper

Finish Diameter

15.2mm to 6.7mm diameter

Maximum Finishing Speed

3.04 m.p.s. drawing or 1.27 m.p.s. shaving

Coil Capacity

115 kg

Maximum Motor

100 h.p.

View Double Deck Rod Block Spec Sheet

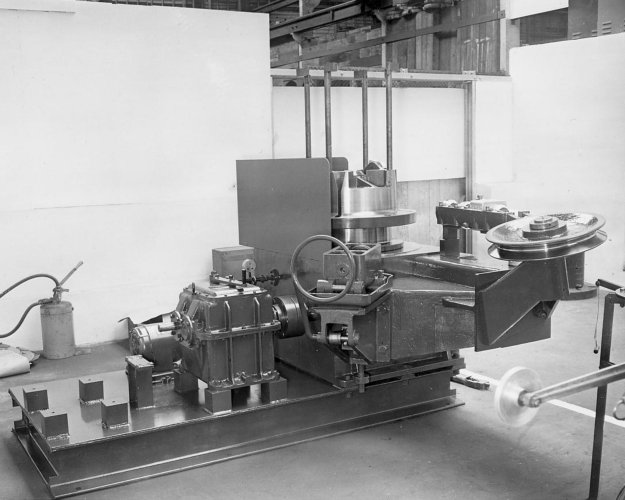

Picture: Double Deck Rod Block Machine
