Make:

Winget Syncro

more pictures...

Type:

Single and Double Deck Accumulating Rod Block Machines

Description:

These machines are used as the input to a heavy rod breakdown machine or a spooler. The addition of the machine to a rod breakdown machine allows a finer finishing range to be achieved from a standard machine. In the single and double die versions the accumulating block stores the wire before it enters the rod breakdown machine.

Specification:

Maximum Entry

8mm copper or 9.5mm aluminium

Finish Diameter

6.5mm diameter

Maximum Finishing Speed

3.04 m.p.s.

Single Deck Accumulating Rod Block Spec Sheet

Maximum Motor

40 h.p.

Double Deck Accumulating Rod Block Spec Sheet

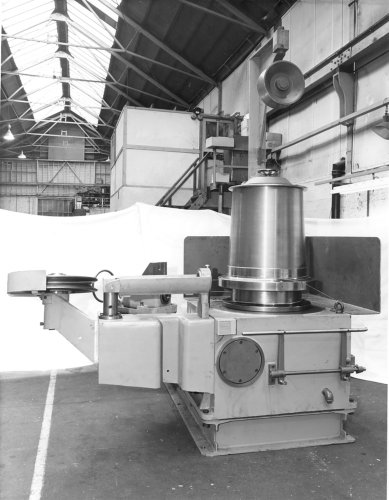

Picture: Double Deck Accumulating Rod Block Machine
